FLANGE NUT
Flange Nut
HSN Fasteners manufactures premium Flange Nuts with an integrated washer base for strong grip and even pressure distribution. The built-in flange prevents loosening and surface damage, making them ideal for automotive, machinery, and heavy-duty applications.
Surface Finish: Zinc Plating, Zinc Flake Coating, Blackening, Hot Dip Galvanisation or as per customer requirements.
Grade: Class 6, Class 8 & Class 10
Metric Sizes

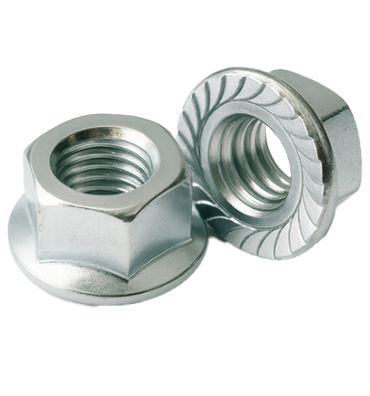

A Flange Nut is a hex nut with an integrated wide flange at one end that distributes pressure evenly, reducing the risk of damage and loosening. It provides a secure grip and is commonly used in automotive, machinery, and structural applications.
Size Range: M06 – M16
Detailed Specifications of Flange Nut

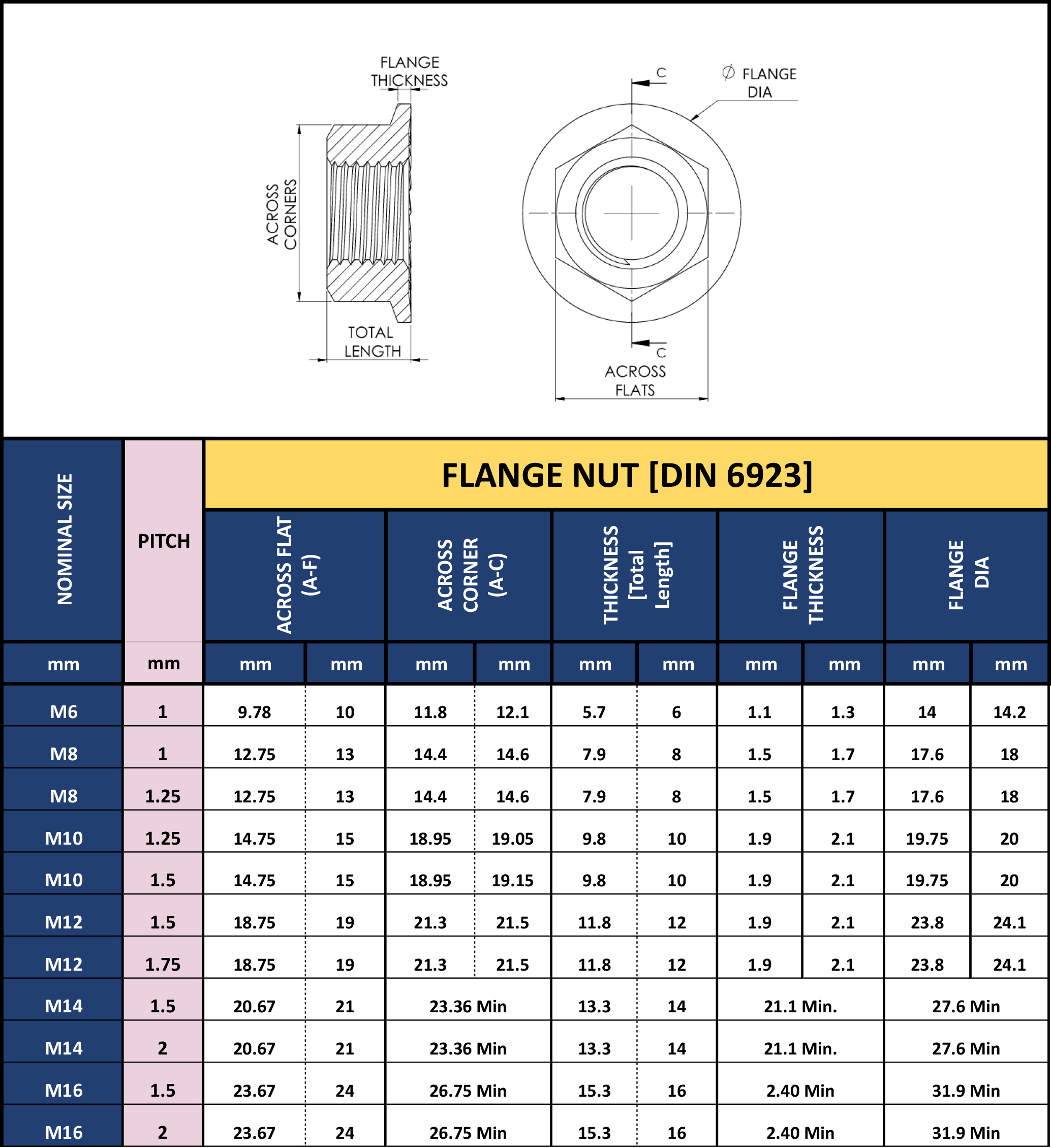

[DIN 6923]
Detailed Specifications of Flange Nut

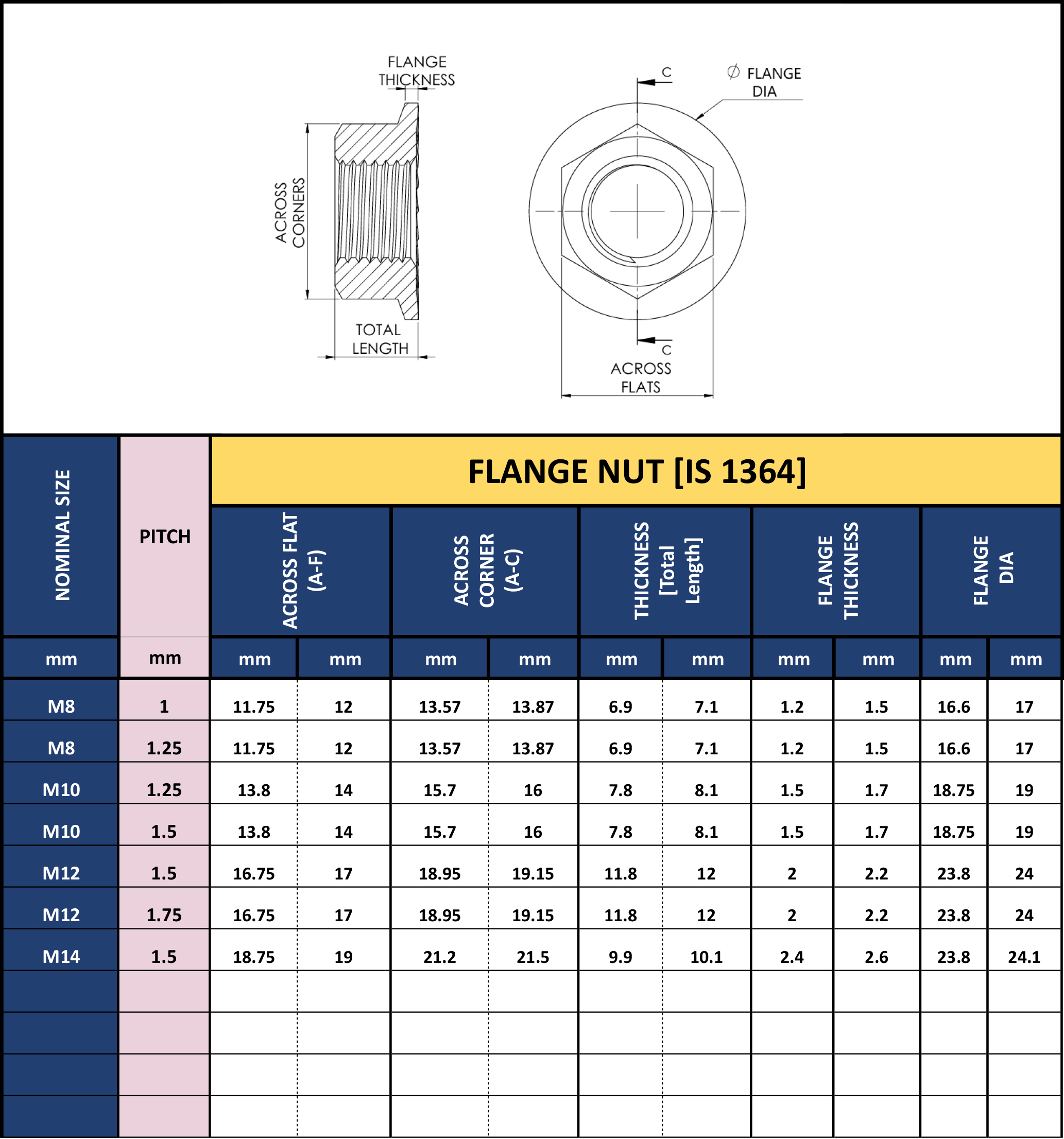

[DIN 1364]
Inch Sizes
Flange Nuts are hex nuts with a built-in washer base that provides strong grip, even load distribution, and vibration resistance. They are widely used in automotive, machinery, and industrial applications.
Size Range: 1/4″ – 5/8″ UNC, UNF, BSW, BSF

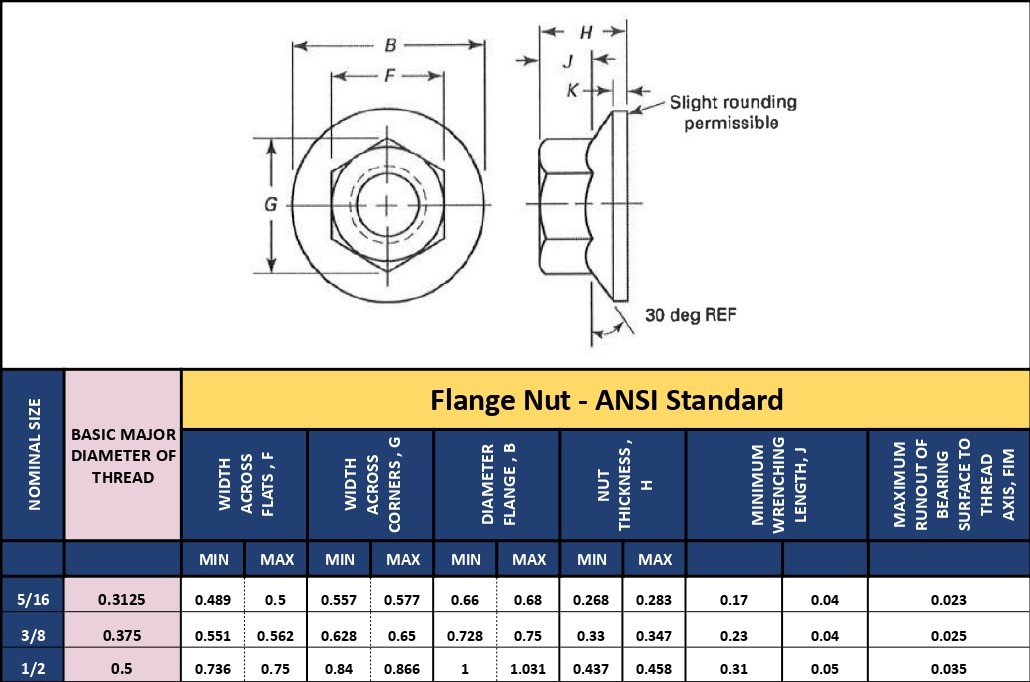

Detailed Specifications of Flange Nut ANSI Standard
