HEX FLANGE BOLT
Hex Flange Bolt
A Hex flange bolt is a type of bolt with a built-in washer-like flange beneath the hex head. The flange distributes the clamping load over a larger area, reducing the need for a separate washer and improving grip. These bolts provide strong, vibration-resistant fastening and are widely used in automotive, machinery, and structural applications.
- Integrated flange eliminates the need for separate washers
- Provides even load distribution and enhanced grip strength
- Resists loosening under vibration and heavy loads
- Available in various grades, finishes, and thread lengths
- Commonly used in automotive engines, machinery, and structural assemblies
Surface Finish: Zinc Plating, Zinc Flake Coating, Blackening, Hot Dip Galvanisation or as per customer requirements.
Grade: Class 6, Class 8 & Class 10
PRODUCT RANGE : 1/4″ – 1″ UNC

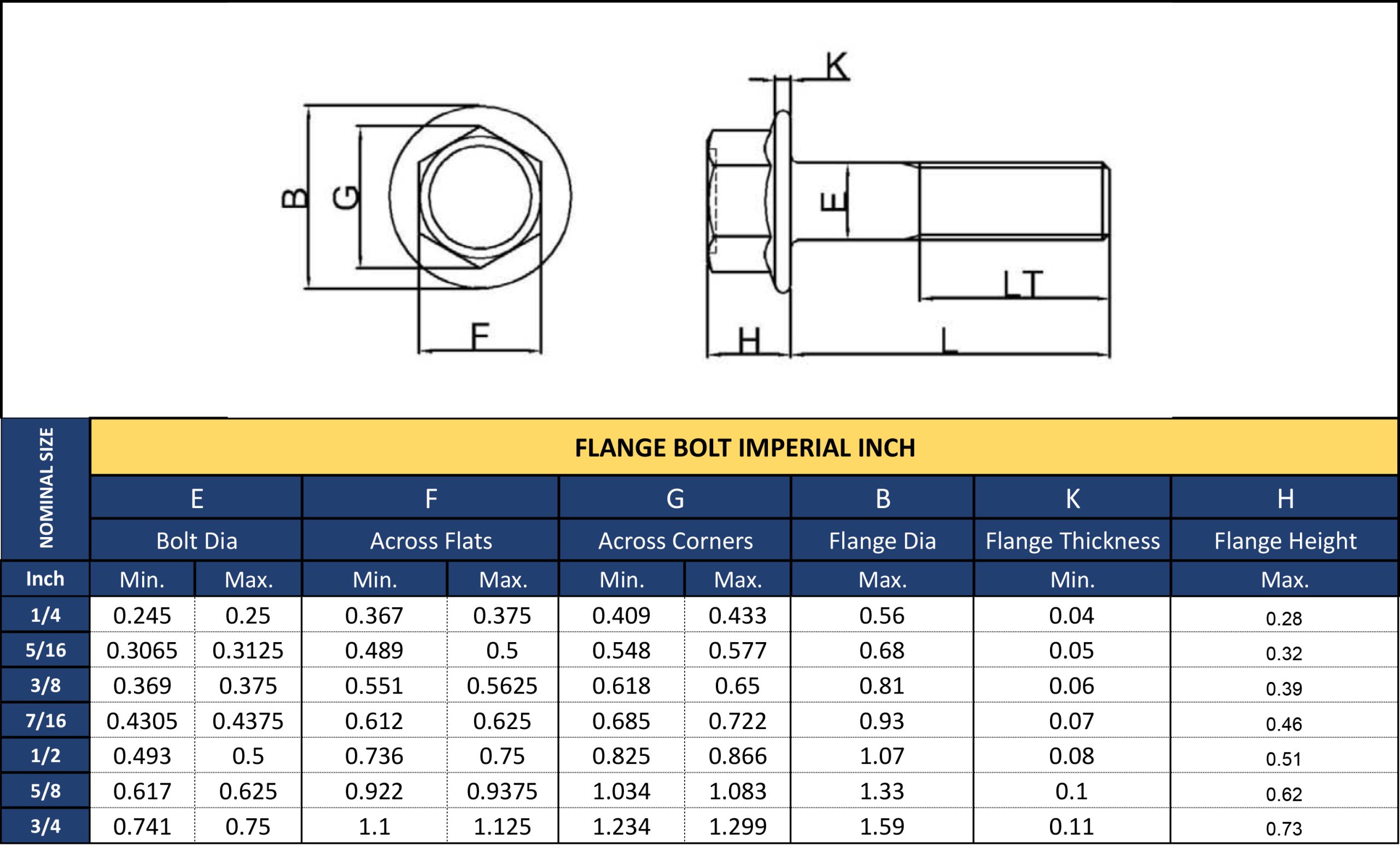

Detailed Specifications of Hex Flange Bolt
