NYLOCK FLANGE NUT
Nylock Flange Nut
Secure Locking + Load Distribution in One Fastener
HSN Fasteners Nylock Flange Nuts (NFN) feature a nylon insert for vibration resistance and a flanged base for even load distribution, eliminating the need for separate washers. Ideal for secure, durable fastening in demanding applications.
Surface Finish: Zinc Plating, Zinc Flake Coating, Blackening, Hot Dip Galvanisation or as per customer requirements.
Grade: Class 6, Class 8 & Class 10
Metric Sizes
A Nylock Flange Nut combines a hex nut with a built-in flange and a nylon insert for self-locking. The flange spreads load evenly, while the nylon insert resists loosening from vibration, making it ideal for automotive, machinery, and heavy-duty applications.
Size Range: M8 – M12

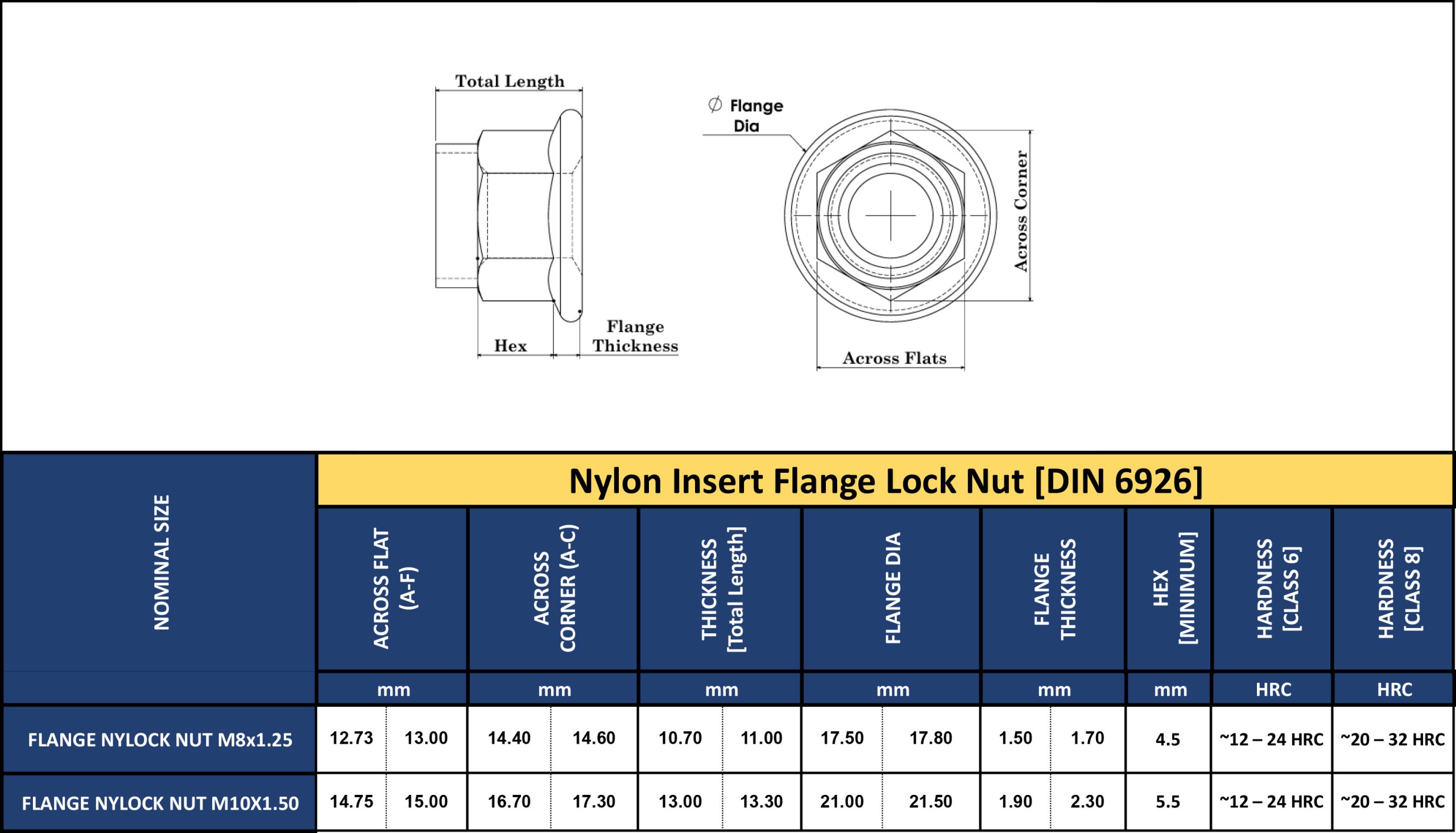

Detailed Specification of Nylock Flange Nut [DIN 6926]
Inch Sizes
Nylock Flange Nuts combine a nylon insert with an integrated washer base, offering both vibration resistance and even load distribution. Commonly used in automotive, machinery, and heavy-duty applications, they provide secure fastening without the need for a separate washer.
Size Range: 1/4″ – 5/8″ UNC, UNF, BSW, BSF

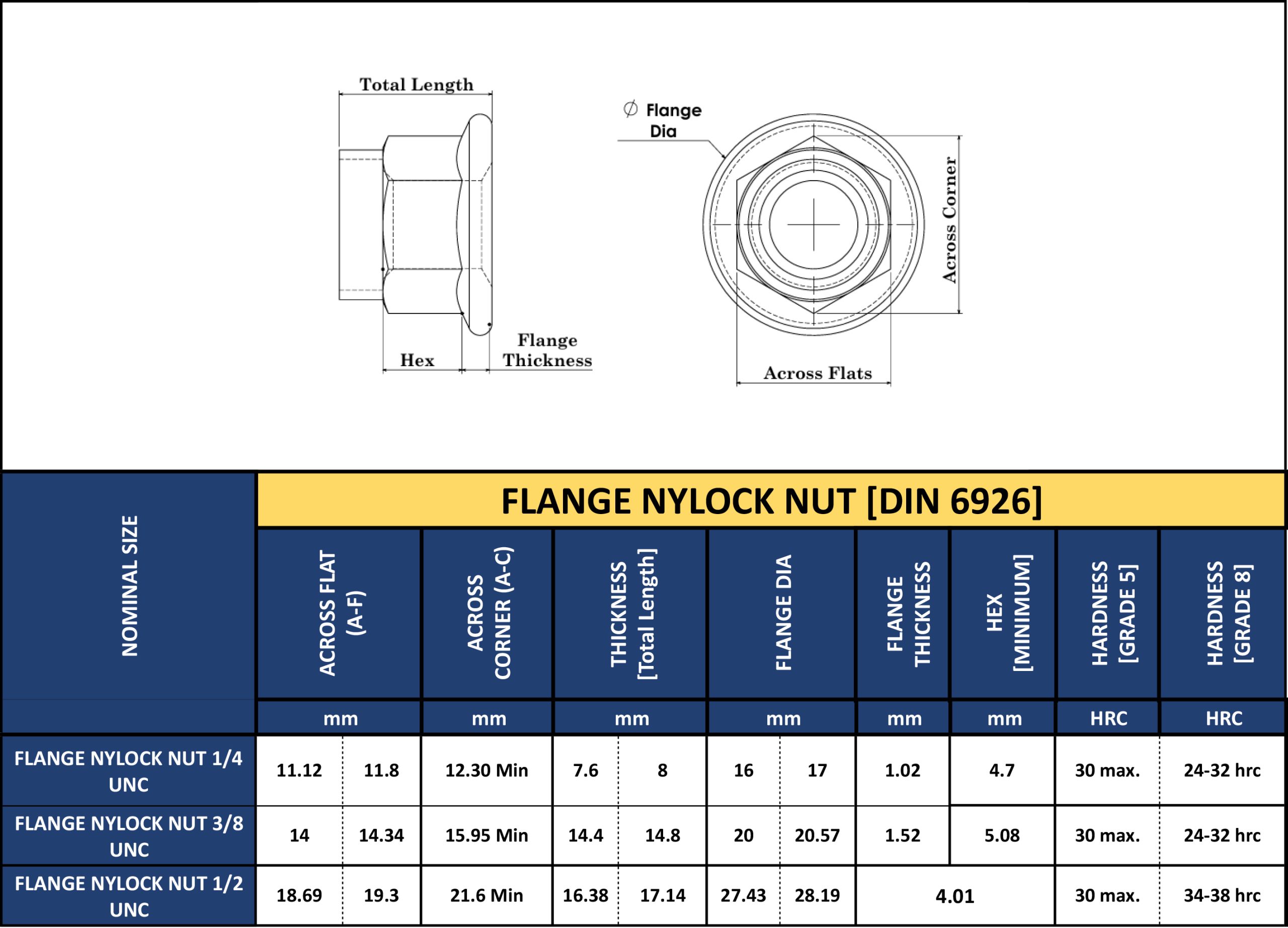

Detailed Specification of Nylock Flange Nut [DIN 6926]
