NYLOCK NUT

Nylock Nut: Nylon Insert Lock Nut

HSN Fasteners offers a comprehensive range of Nylon Insert Lock Nuts, commonly known as Nylock Nuts, designed to resist loosening from vibration and torque. These nuts feature a durable nylon washer insert that grips the threads of the bolt upon tightening, providing a secure and reusable locking mechanism.

Standards – DIN 982 / DIN 985

Surface Finish: Zinc Plating, Zinc Flake Coating, Blackening, Hot Dip Galvanisation or as per customer requirements.
Grade: Class 6, Class 8 & Class 10

Metric sizes
Inch sizes
CUSTOMIZE

Metric Sizes

A Nylock Nut (Metric Size) is a self-locking nut with a nylon insert that prevents loosening from vibration or torque. Designed to metric standards, it offers secure, durable fastening for automotive, machinery, and industrial applications.

Size Range: M5 – M24

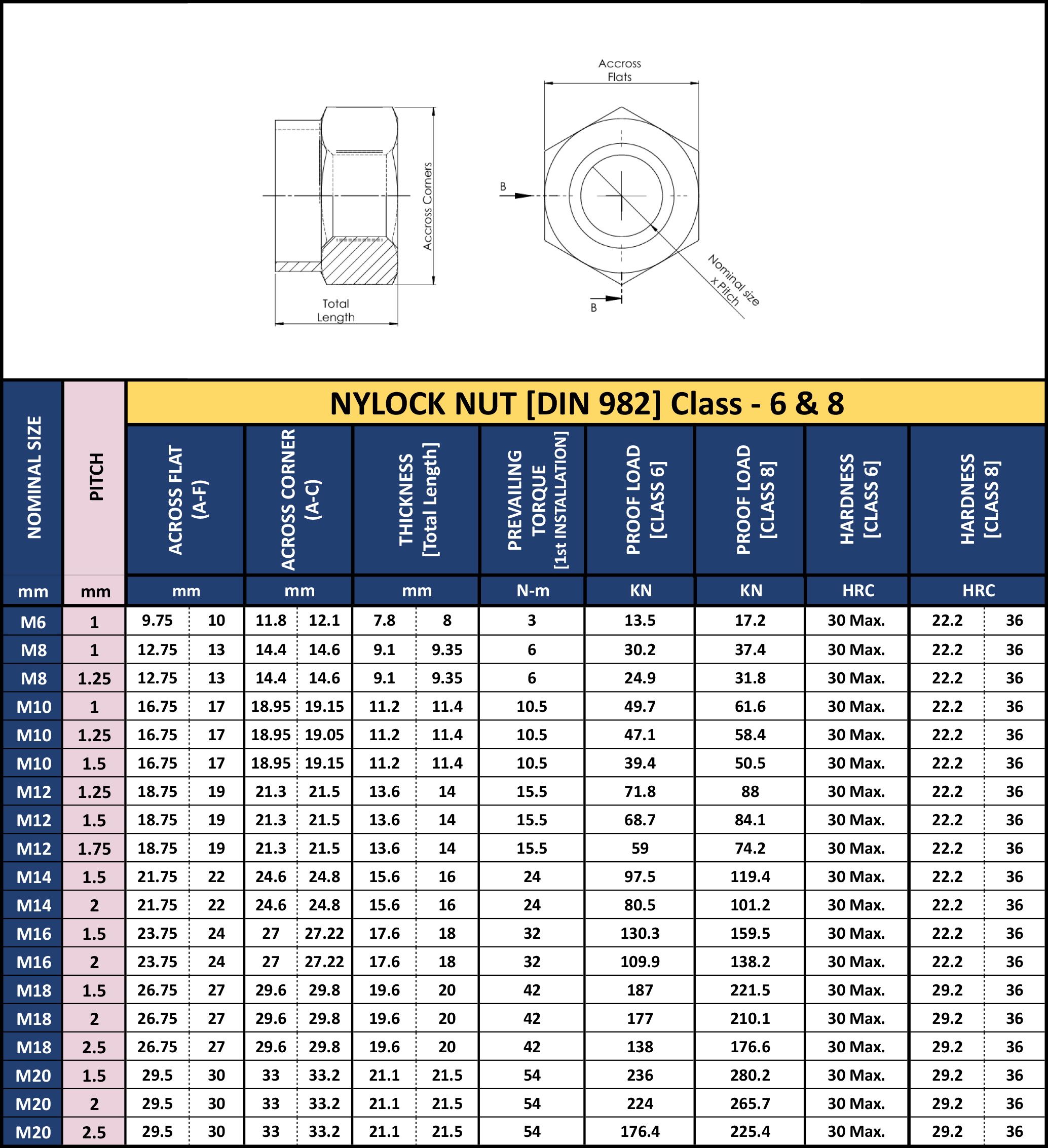

Detailed Specification of Nylock Nut DIN 982

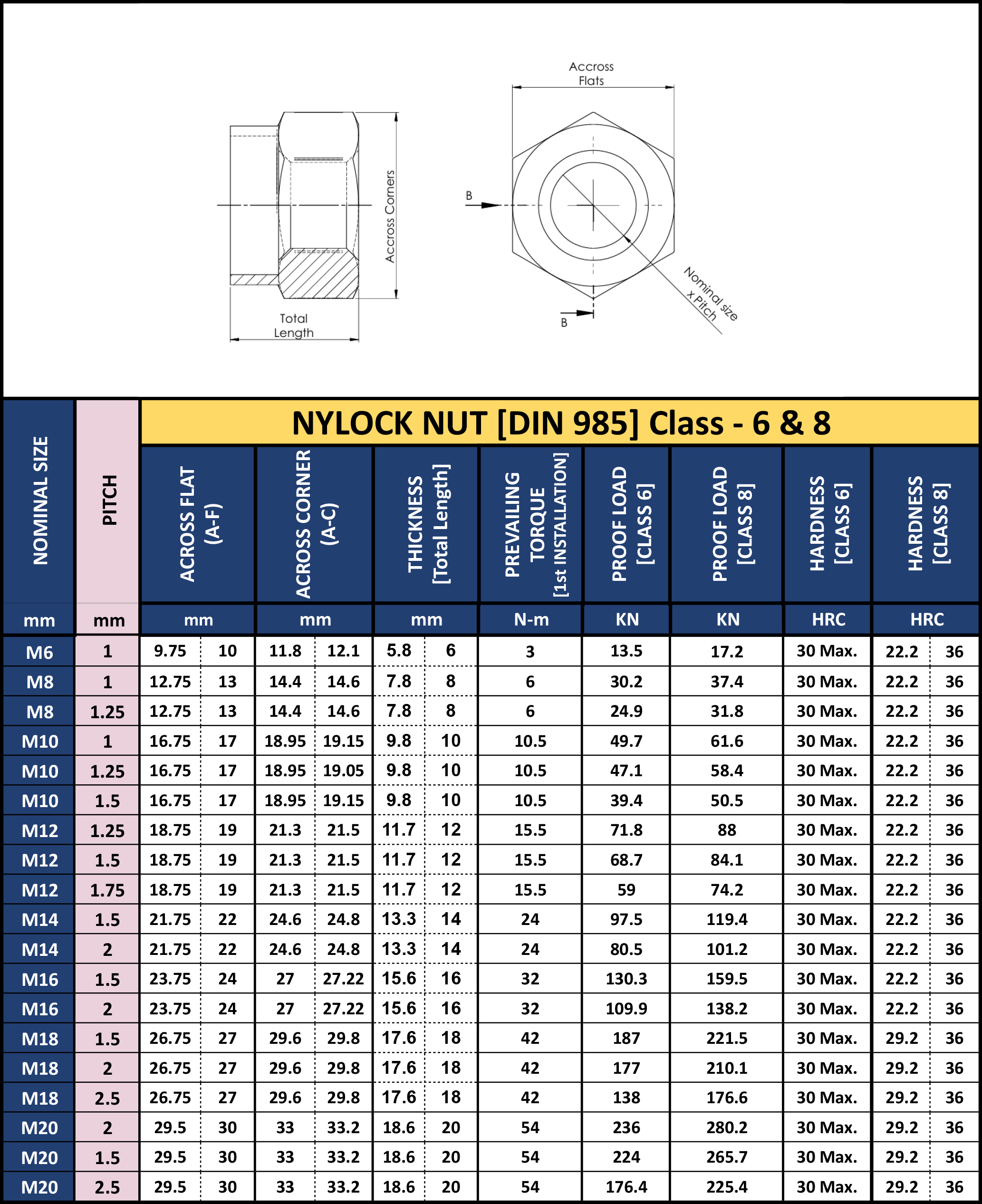

Detailed Specification of Nylock Nut Din 985

Inch Sizes

A Nylock Nut is a type of lock nut that has a nylon insert to prevent loosening caused by vibration or movement. It is commonly available in inch sizes ranging from small machine screw sizes up to heavy-duty sizes like 1 inch. These nuts are widely used in automotive, machinery, aerospace, and general engineering applications where a secure and vibration-resistant fastening is required.

Size Range: 3/16” – 3/4”

Thread Type: BSW & BSF

Surface Finish: Zinc Plating, Zinc Flake Coating, Blackening, Hot Dip Galvanisation or as per customer requirements.
Grade: Grade 6, Grade 8 & Grade 10

Size Range: 3/16″ – 3/4”

Thread Type: UNC & UNF

Surface Finish: Zinc Plating, Zinc Flake Coating, Blackening, Hot Dip Galvanisation or as per customer requirements.
ASTM Grade: Grade A, Grade B, Grade C, Grade D
SAE Grade: Grade 2, Grade 5, Grade 8

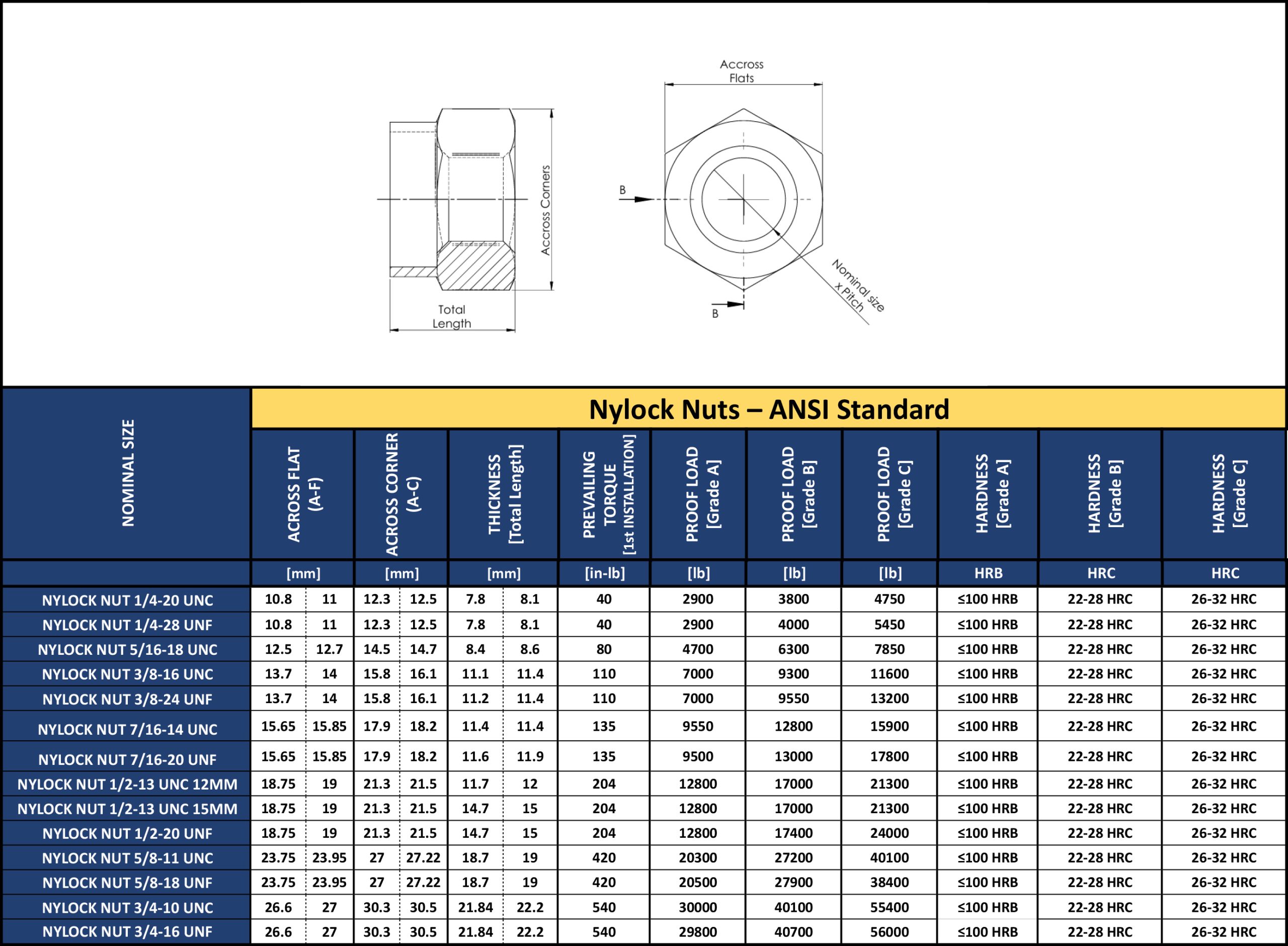

Detailed Specification of Nylock Nut ANSI Standard

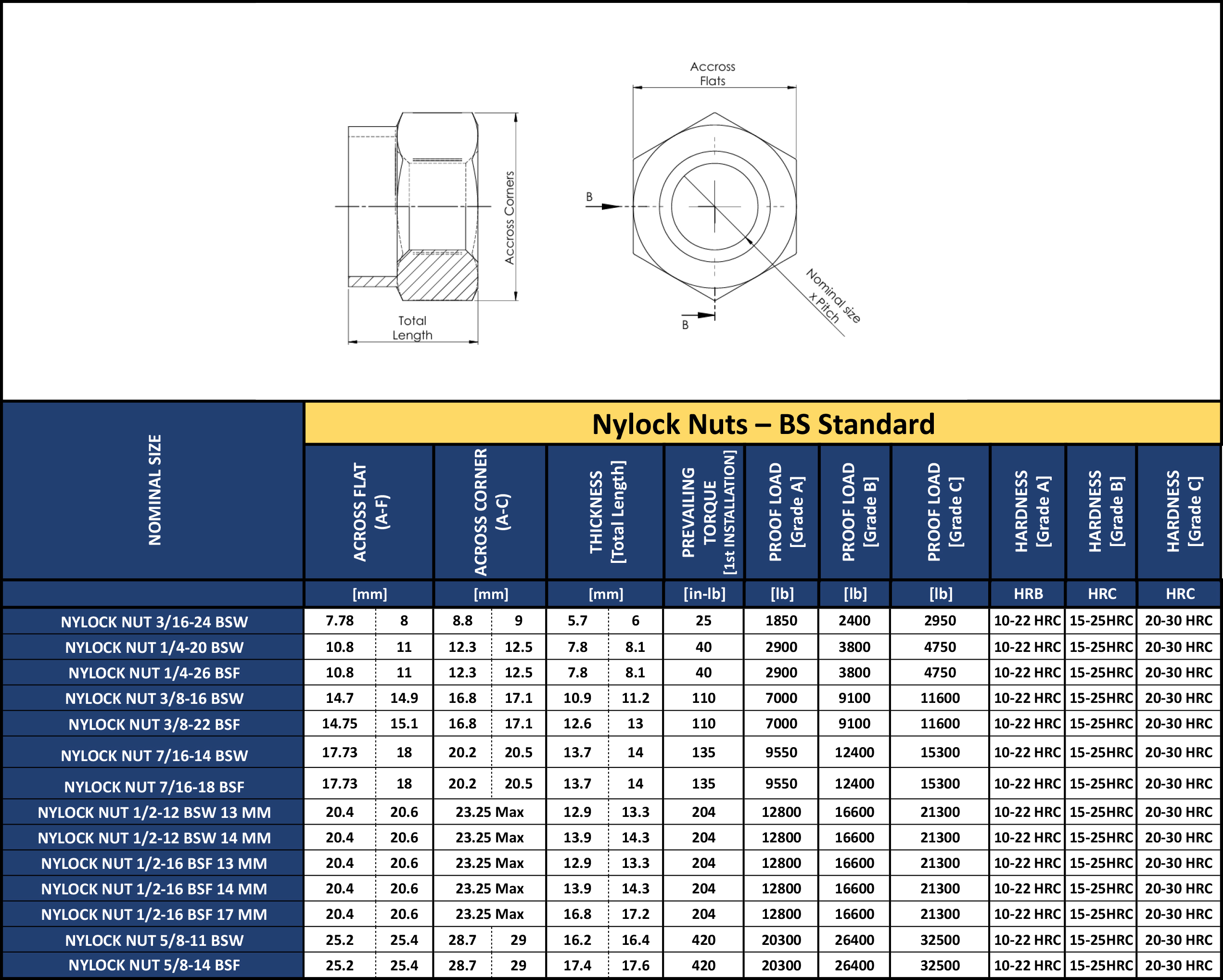

Detailed Specification of Nylock Nut BS Standard
